The Legend Set 4CH
-
Estimated Delivery:Mar 14 - Mar 18

The Legend Set 4CH

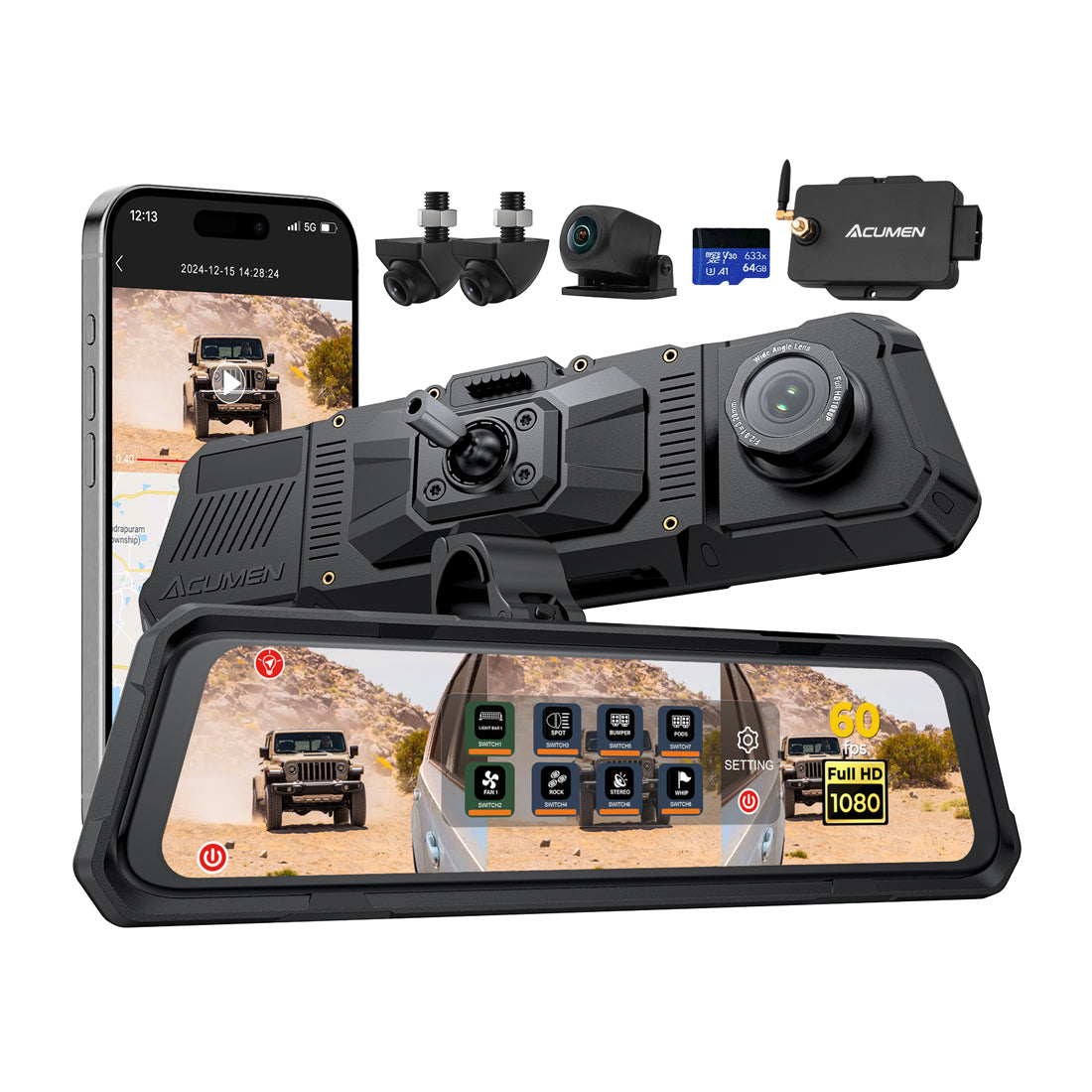

The Acumen The Legend Set 4CH is a premier rearview mirror camera system engineered to provide exceptional visibility, safety, and durability for off-road enthusiasts and daily drivers. Powered by a dual high-performance image processor, this system delivers superior quad-FHD recording, featuring a front camera with a starlight-grade CMOS sensor and a 6-layer glass wide-angle lens, capturing stunning 1080p video. The rear and side cameras are equipped with Wide Dynamic Range (WDR) and 180° ultra-wide-angle lenses, offering a field of view 1.5 times larger than standard rearview mirrors, minimizing blind spots with WDR and 3D noise reduction for significantly enhanced night vision. Supporting up to 256GB of storage, it ensures worry-free recording. As the only IP67-rated mirror, it withstands high-pressure water jets, dust, and shock, featuring an integrated design with a vibration-absorbing buffer layer and a large heat sink for reliable performance in extreme temperatures. This U.S. patented system includes a 12-inch IPS HD display with a 2.5D curved touchscreen for power switch control, eliminating outdated panels, and introduces blind spot display with turn signal synchronization for safer lane changes and turns. Built-in 5.8G WiFi and a high-sensitivity GPS module enable real-time video sharing and precise route tracking via a dedicated app, while a supercapacitor and a 9V-30V power range with stable 5V output ensure professional performance. Paired with a free 64GB memory card and a 2-year warranty, this set is perfect for cars, trucks, SUVs, and UTVs.
Parameter | Value |
---|---|
Screen Size (inch) | 12" IPS Touch Screen |
Dimensions (inch) | L12.3*W3.3*H1.6 |
Material | Aluminum & ABS |
Weight (lbs) | 1.7 |
# of Cameras | 4 |
Front Camera Resolution | 3840*2160P |
Rear Camera Resolution | 1920*1080P |
Recording Resolution | 1080P Front +1080P Rear*3 |
Footage Format | .MP4 |
Picture Format | .JPG |
Camera Angle of View | Front: FOV 148°, Rear: FOV 180° |
Camera Lens | Front: 6-Glass, Rear: 6-Glass |
Night Vision | Super WDR |
Wi-Fi APP Control | Yes |
Bluetooth APP Control | True |
GPS Logger | Yes |
G-Sensor (Impact Sensor) | True |
Parameter | Value |
---|---|
Loop-recording | True |
SD Card Size | 64GB (Up to 256GB) |
Constantly recording time | 6 hours |
Parking Monitoring | Time Lapse, Up to 24 hours |
Adjust Parking Guide Line | Adjustable |
Extension Camera Cable | 5Pin 18/32 Ft XLR |
Microphone | Built-in |
Speaker | Built-in |
Built in Battery | Super Capacitor |
Waterproof & Dustproof | True |
Operating Temperature | -22°F to 176°F(-30°C to +80°C) |
Power Voltage | 12V |
AMP Rating | 125A |
Built in Programmable Switch Control | True |
Acumen Programmable Switches Box | Yes |
Parameter |
![]() |
![]() |
![]() |
---|---|---|---|
Screen size | 12" IPS Touch Screen | 12" IPS Touch Screen | 12" IPS Touch Screen |
Dimension | L12.3*W3.3*H1.6 | L12.3*W3.3*H1.6 | L12.3*W3.3*H1.6 |
Material | Aluminum & ABS | Aluminum & ABS | Aluminum & ABS |
Weight | 1.7 | 1.7 | 1.7 |
Number of cameras | 4 | 2 | 3 |
Front camera resolution | 3840*2160P | 3840*2160P | 3840*2160P |
Rear camera resolution | 1920*1080P | 2560*1440P | 1920*1080P |
Recording resolution | 1080P Front +1080P Rear*3 | 4K Front +2.5K Rear | 1080P Front +1080P Rear*2 |
Footage format | .MP4 | .MP4 | .MP4 |
Picture format | .JPG | .JPG | .JPG |
Camera angle of view | Front: FOV 148°, Rear: FOV 180° | Front: FOV 148°, Rear: FOV 180° | Front: FOV 148°, Rear: FOV 180° |
Camera lens | Front: 6-Glass, Rear: 6-Glass | Front: 6-Glass, Rear: 6-Glass | Front: 6-Glass, Rear: 6-Glass |
Night vision | Super WDR | Super WDR | Super WDR |
Wifi capability | Yes | Yes | Yes |
Bluetooth app control | true | true | true |
Gps log | Yes | Yes | Yes |
G sensor | true | true | true |
Loop recording | true | true | true |
Sd card | 64GB (Up to 256GB) | 64GB (Up to 256GB) | 64GB (Up to 256GB) |
Constant recording time | 6 hours | 6 hours | 6 hours |
Parking monitoring | Time Lapse, Up to 24 hours | Time Lapse, Up to 24 hours | Time Lapse, Up to 24 hours |
Adjust parking guide line | Adjustable | Adjustable | Adjustable |
Extension camera cable | 5Pin 18/32 Ft XLR | 5Pin 32 Ft XLR | 5Pin 18/32 Ft XLR |
Microphone | Built-in | Built-in | Built-in |
Speaker | Built-in | Built-in | Built-in |
Built in battery | Super Capacitor | Super Capacitor | Super Capacitor |
Waterproof dustproof | true | true | true |
Operating temperature | -22°F to 176°F(-30°C to +80°C) | -22°F to 176°F(-30°C to +80°C) | -22°F to 176°F(-30°C to +80°C) |
Hardwire kit | N/A | N/A | N/A |
Power votage | 12V | 12V | 12V |
Amp rating | 125A | 125A | 125A |
Built in programmable switch control | true | true | true |
Acumen programmable switches box | Yes | Yes | Yes |
