ACUMEN

Acumen Box with 8-Gang in-Car Power Solid-State Switch Control
Regular price $200.00
Sale price $200.00 Regular price
Unit price
Save $0.00
Dealer Login

【Automotive-Grade Digital Chips】 Utilizes high-performance digital chips from European manufacturers, validated for safety and reliability from -22°F to 257°F.

【Integrated Multi-Control Switching】 Features patented technology for LCD touchscreen and Bluetooth control, offering 125 amps with 8 switches (6 at 20A, 2 at 40A) and surge/low voltage protection.

【Superior Aluminum Alloy Design】 Housed in a dustproof, shockproof, and IP69 waterproof aluminum body with a special coating for exceptional durability.

【Enhanced Protection】 Includes solid-state relays with over-voltage, reverse polarity, over-current, and over-temperature protection for safe device operation.

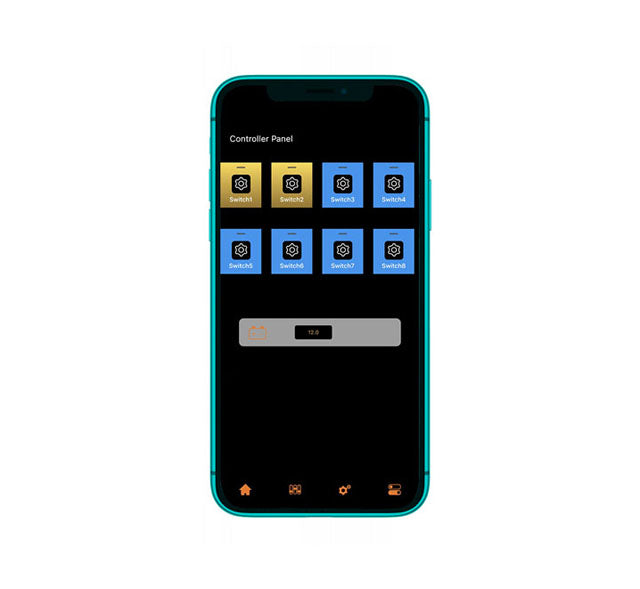

【Bluetooth App Control】 Equipped with a Bluetooth transmitter for remote control via a mobile app, supporting icon definitions, dimming, strobe modes, and custom naming.

【One-Touch High/Low Beam Switching】 Enables easy switching between high and low beams via The Legend mirror or panel, enhancing visibility in dark or adverse weather conditions.

【Intelligent GPS Speed Sync】 Built-in GPS module allows speed-based switch activation, with one-touch enable/disable for lights or devices.

【Easy Installation】 Features a plug-and-play harness and two mounting options, requiring no complex wiring or large holes.

【Wide Application】 Compact design suits commercial/off-road pickup trucks, UTVs, SUVs, boats, and more, with flexible interior space use.

【Hassle-Free 2-Year Warranty】 Backed by a 2-year warranty, with a 30-day replacement or 100% refund option and 24-hour U.S.-based customer support.

Select Addons
The Legend 2ch Waterproof Rear View Mirror Dash Cam with 4K Front and 2.5K Rear Cameras
The Legend 2ch Waterproof Rear View Mirror Dash Cam with 4K Front and 2.5K Rear Cameras
$599.00
The Legend 3ch Waterproof Rear View Mirror Dash Cam with 1080P 60fps Front+ Rear+ Bumper/Cabin Cameras
The Legend 3ch Waterproof Rear View Mirror Dash Cam with 1080P 60fps Front+ Rear+ Bumper/Cabin Cameras
$649.00
The Legend 4ch Waterproof Rear View Mirror Dash Cam with 1080P Front+ Rear+ Left/Right Side Cameras
The Legend 4ch Waterproof Rear View Mirror Dash Cam with 1080P Front+ Rear+ Left/Right Side Cameras
$699.00
The Legend Panel with 4.3-inch Touchscreen for 8-Gang in-Car Power Switch Box
The Legend Panel with 4.3-inch Touchscreen for 8-Gang in-Car Power Switch Box
$249.00
Ask a question

Ask a Question

* Required fields

 Size guide Share

  • Estimated Delivery:Oct 29 - Nov 02

Acumen Box - Acumen Camera

Acumen Box with 8-Gang in-Car Power Solid-State Switch Control

Regular price $200.00
Sale price $200.00 Regular price
Unit price
Product description
Spec
Comparison

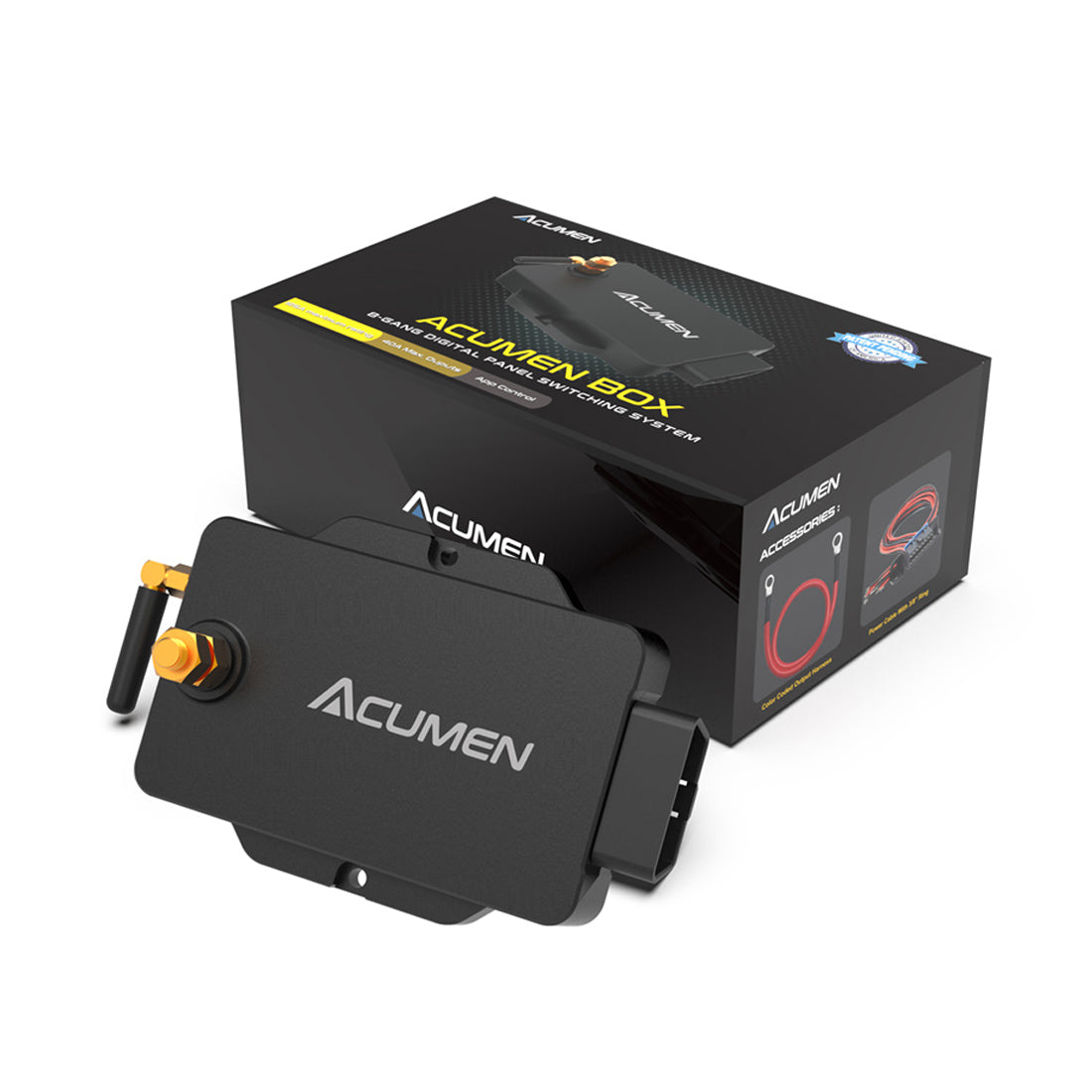

What's in The Box

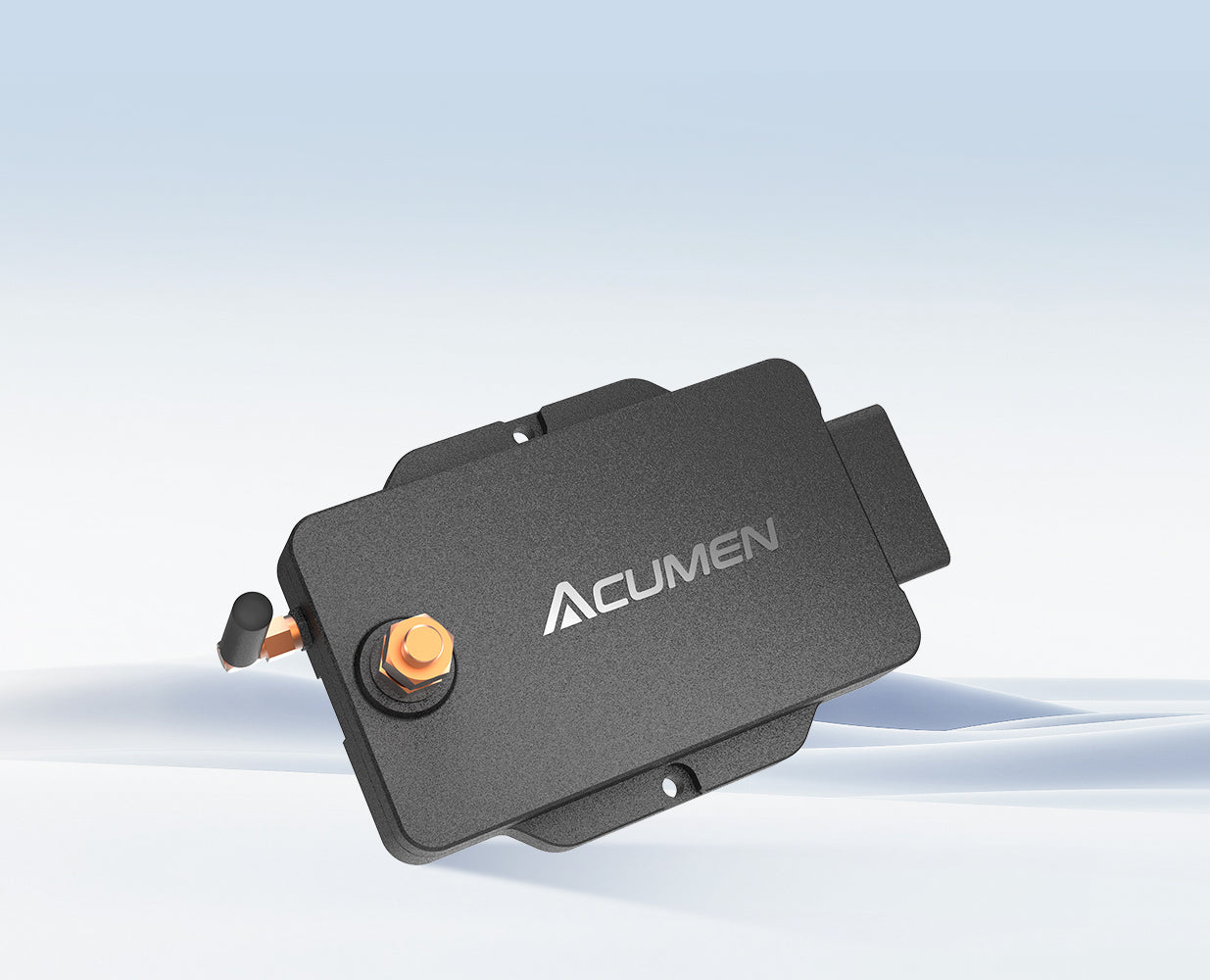

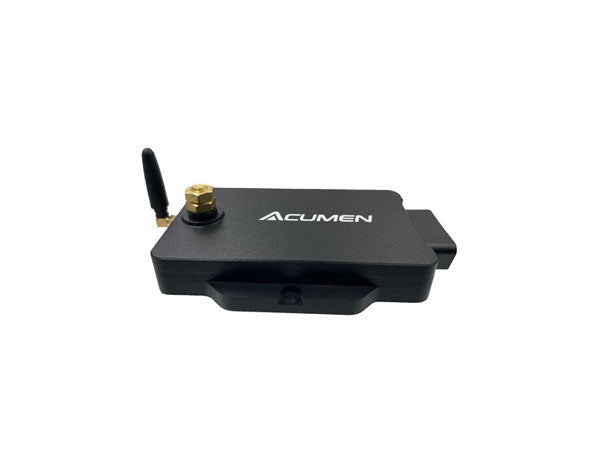

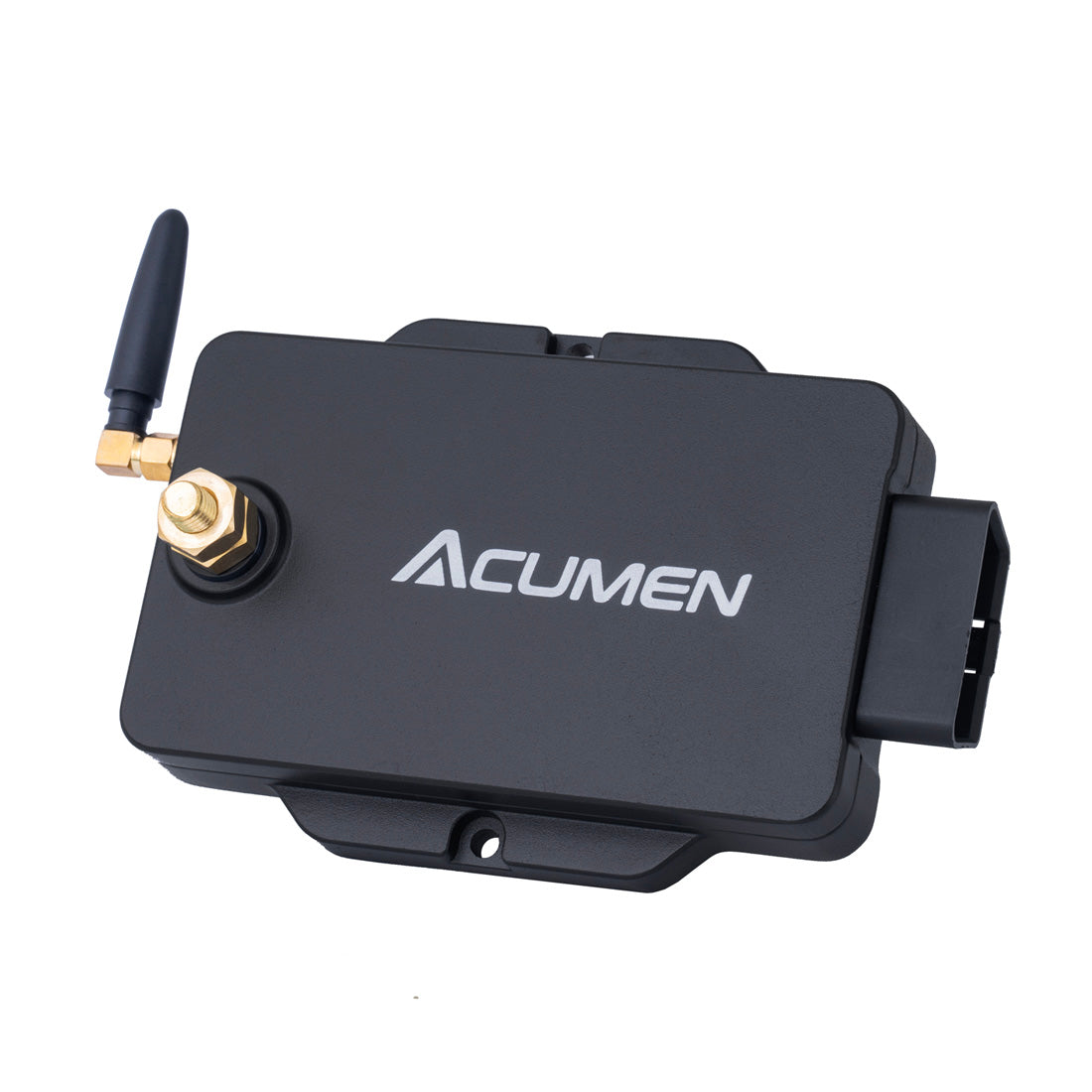

The Acumen Box is a cutting-edge automotive-grade digital switch control system designed to transform power management for your vehicle’s electronic accessories, seamlessly integrating with Acumen digital rearview mirror systems. Featuring high-performance digital chips from top European manufacturers, validated across millions of vehicles, the Acumen Box ensures safety, stability, and reliability in extreme under-hood temperatures from -22°F to 257°F. This patented American technology enables power switch control via the rearview mirror LCD touchscreen or wireless Bluetooth from your phone, supporting up to 125 amps through 8 programmable switches—6 at 20 amps and 2 at 40 amps—with surge and low voltage protection. Encased in a robust aluminum alloy body with an IP69 waterproof rating and special coating, the Acumen Box is dustproof, shockproof, and impact-resistant. With built-in solid-state relays and a high-sensitivity GPS module for speed-sync features, it offers over-voltage, reverse polarity, over-current, and over-temperature protection. Easy to install with a plug-and-play harness and two mounting options, the Acumen Box suits commercial or off-road pickup trucks, UTVs, SUVs, boats, and more, backed by a 2-year warranty and U.S.-based support.







The Acumen Box is a cutting-edge automotive-grade digital switch control system designed to transform power management for your vehicle’s electronic accessories, seamlessly integrating with Acumen digital rearview mirror systems. Featuring high-performance digital chips from top European manufacturers, validated across millions of vehicles, the Acumen Box ensures safety, stability, and reliability in extreme under-hood temperatures from -22°F to 257°F. This patented American technology enables power switch control via the rearview mirror LCD touchscreen or wireless Bluetooth from your phone, supporting up to 125 amps through 8 programmable switches—6 at 20 amps and 2 at 40 amps—with surge and low voltage protection. Encased in a robust aluminum alloy body with an IP69 waterproof rating and special coating, the Acumen Box is dustproof, shockproof, and impact-resistant. With built-in solid-state relays and a high-sensitivity GPS module for speed-sync features, it offers over-voltage, reverse polarity, over-current, and over-temperature protection. Easy to install with a plug-and-play harness and two mounting options, the Acumen Box suits commercial or off-road pickup trucks, UTVs, SUVs, boats, and more, backed by a 2-year warranty and U.S.-based support.







ParameterValue
Screen Size (inch)N/A
Dimensions (inch)L6.5*W3.7*H1.9
MaterialAluminum
Weight (lbs)0.7
# of CamerasN/A
Front Camera ResolutionN/A
Rear Camera ResolutionN/A
Recording ResolutionN/A
Footage FormatN/A
Picture FormatN/A
Camera Angle of ViewN/A
Camera LensN/A
Night VisionN/A
Wi-Fi APP ControlN/A
Bluetooth APP ControlTrue
GPS LoggerN/A
G-Sensor (Impact Sensor)False
ParameterValue
Loop-recordingFalse
SD Card SizeN/A
Constantly recording timeN/A
Parking MonitoringN/A
Adjust Parking Guide LineN/A
Extension Camera CableN/A
MicrophoneN/A
SpeakerN/A
Built in BatteryN/A
Waterproof & DustproofTrue
Operating Temperature-22°F to 176°F（-30°C to +80°C）
Power Voltage12V
AMP Rating125A
Built in Programmable Switch ControlTrue
Acumen Programmable Switches BoxYes
Parameter Acumen Box with 8-Gang in-Car Power Solid-State Switch Control Acumen Box with 8-Gang in-Car Power Solid-State Switch Control The Legend Panel with 4.3-inch Touchscreen for 8-Gang in-Car Power Switch Box The Legend Panel with 4.3-inch Touchscreen for 8-Gang in-Car Power Switch Box
Screen size N/A 4.3
Dimension L6.5*W3.7*H1.9 L5*W3*H0.9
Material Aluminum Aluminum
Weight 0.7 0.6
Number of cameras N/A N/A
Front camera resolution N/A N/A
Rear camera resolution N/A N/A
Recording resolution N/A N/A
Footage format N/A N/A
Picture format N/A N/A
Camera angle of view N/A N/A
Camera lens N/A N/A
Night vision N/A N/A
Wifi capability N/A N/A
Bluetooth app control true N/A
Gps log N/A N/A
G sensor N/A N/A
Loop recording N/A N/A
Sd card N/A N/A
Constant recording time N/A N/A
Parking monitoring N/A N/A
Adjust parking guide line N/A N/A
Extension camera cable N/A N/A
Microphone N/A No
Speaker N/A No
Built in battery N/A No
Waterproof dustproof true true
Operating temperature -22°F to 176°F（-30°C to +80°C） -22°F to 176°F（-30°C to +80°C）
Hardwire kit N/A N/A
Power votage 12V N/A
Amp rating 125A N/A
Built in programmable switch control true N/A
Acumen programmable switches box Yes N/A
