The Legend 2ch Waterproof Rear View Mirror Dash Cam with 4K Front and 2.5K Rear Cameras

Name: The Legend 2ch Waterproof Rear View Mirror Dash Cam with 4K Front and 2.5K Rear Cameras
Brand: acumen-camera
Price: 599.00 USD
Availability: InStock
Rating: 5.0 (10 reviews)

$599.00

Save $0.00

Dealer Login

【High-Quality 4K & 2.5K Recording】 Front camera captures 4K video (3840×2160P) with a starlight CMOS sensor, while the rear offers 2.5K (2560×1440P) with WDR and a 180° lens, covering 1.5x more with clear night vision, supporting up to 256GB storage.

【IP67 Waterproof, Dustproof, Shockproof】 The only mirror with an IP67 rating, resisting high-pressure water, dust, and vibrations with a heat-dissipating design (-4°F to 158°F).

【LCD Touchscreen Power Control】 Features a U.S. patented 12-inch IPS HD display with 2.5D curved glass to reduce glare, controlling power switches and replacing outdated panels.

【One-Touch High/Low Beam Switch】 Enables easy high/low beam switching for better visibility in dark or adverse weather (requires Acumen Box connection).

【Intelligent GPS Speed Sync】 Allows speed-based switch activation via the touchscreen and Acumen Box, with one-touch enable/disable for lights or devices.

【Professional Power Design】 Includes a supercapacitor with twice the lifespan of lithium-ion batteries and a 9V-30V to 5V step-down line for stable operation.

【WiFi Video Download Anytime】 Built-in high-speed 5.8G WiFi connects to a mobile app for real-time previews, easy sharing, and one-touch video downloads.

【Precise GPS Route Tracking】 High-sensitivity GPS module with an external antenna embeds location and speed data into videos, reviewable via the app for safety.

【Free 64GB Memory Card】 Comes with a 64GB card and a 2-year warranty, with a 30-day replacement or 100% refund option.

【Hassle-Free U.S. Support】 Backed by a U.S.-based team responding within 24 hours for any product, installation, or usage questions.

Select Addons

179# Jeep Bracket

$40.00

190# Toyota Bracket

$30.00

216# Benz Sprinter Bracket

$40.00

80# Toyota Bracket

$40.00

UTV Pole Clamp Bracket

$40.00

UTV Custom Cage Bracket

$40.00

UTV Polaris New RZR Bracket

$40.00

Quantity

Ask a question

Size guide

Estimated Delivery:Oct 29 - Nov 02

The Legend 2ch Waterproof Rear View Mirror Dash Cam with 4K Front and 2.5K Rear Cameras

$599.00

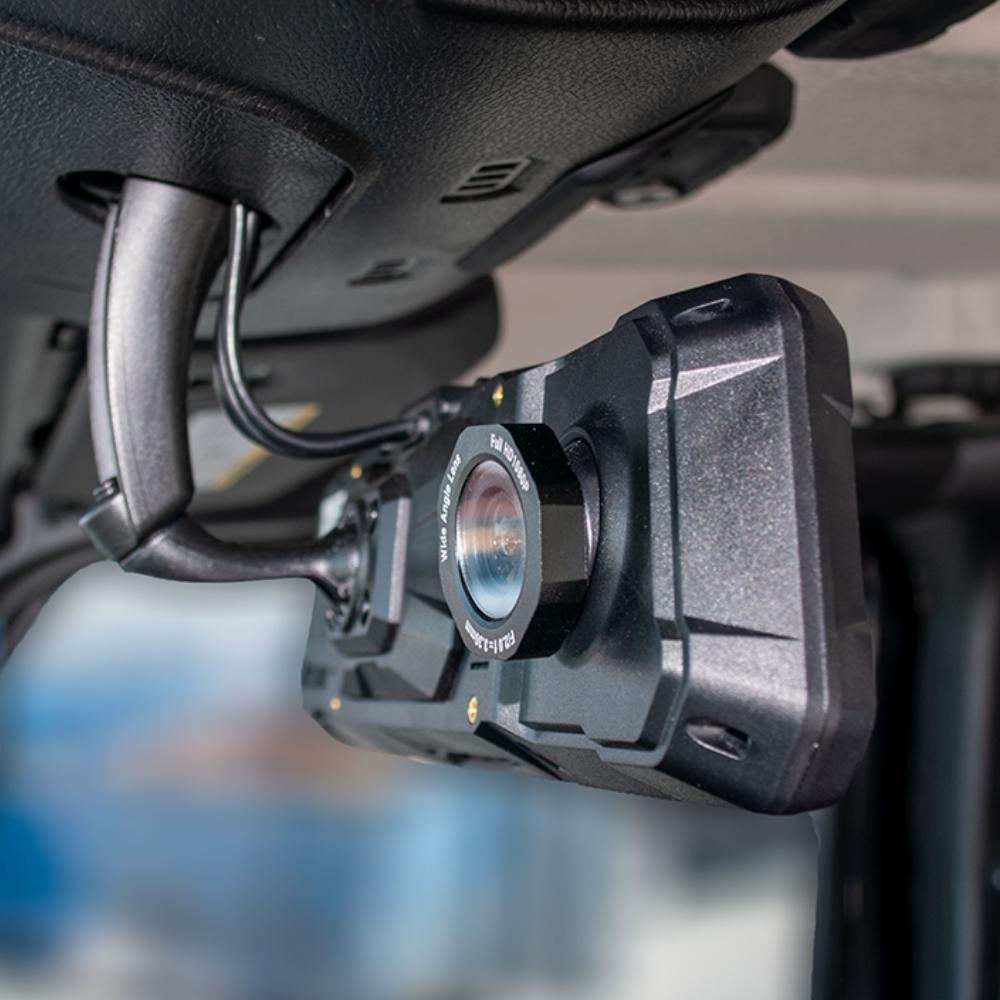

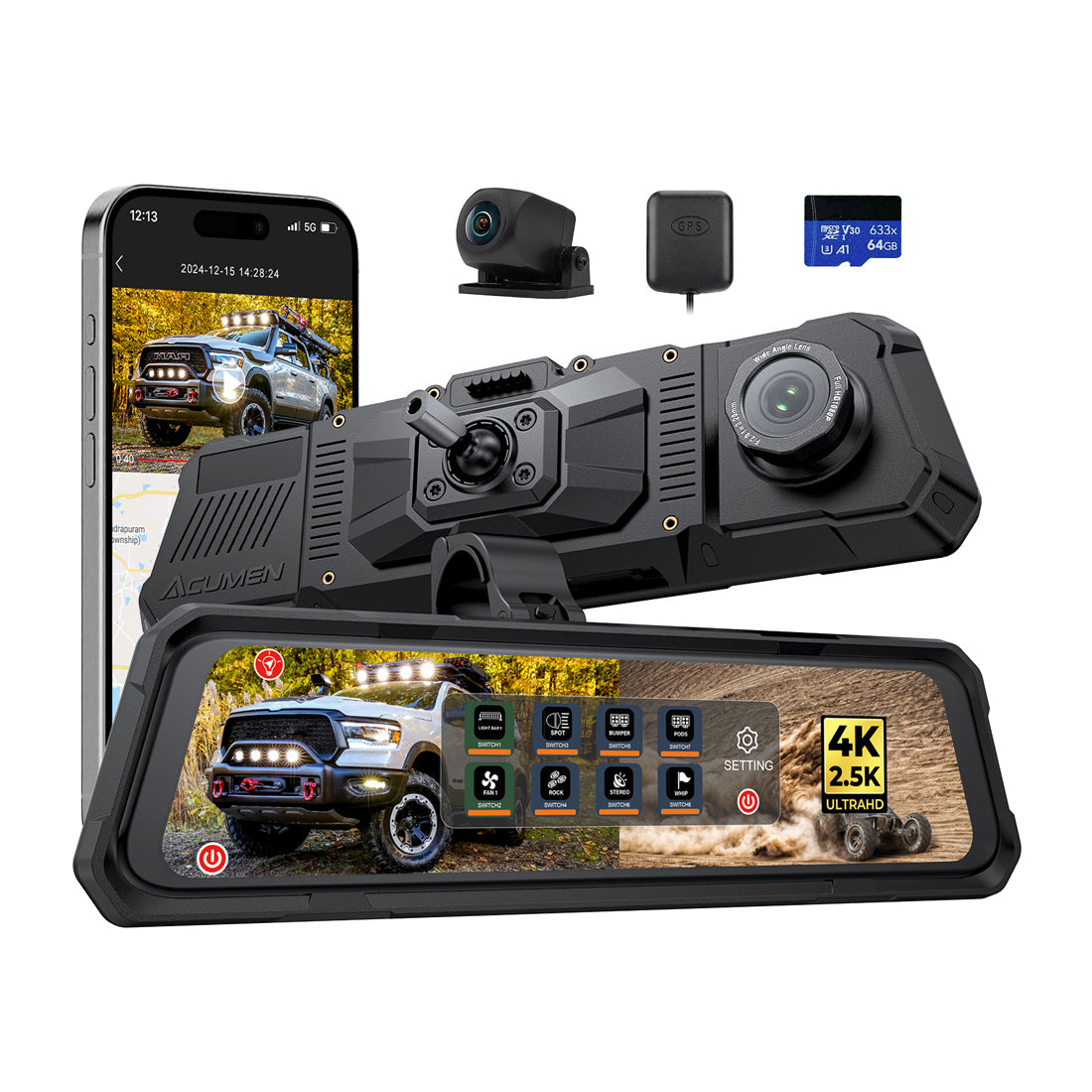

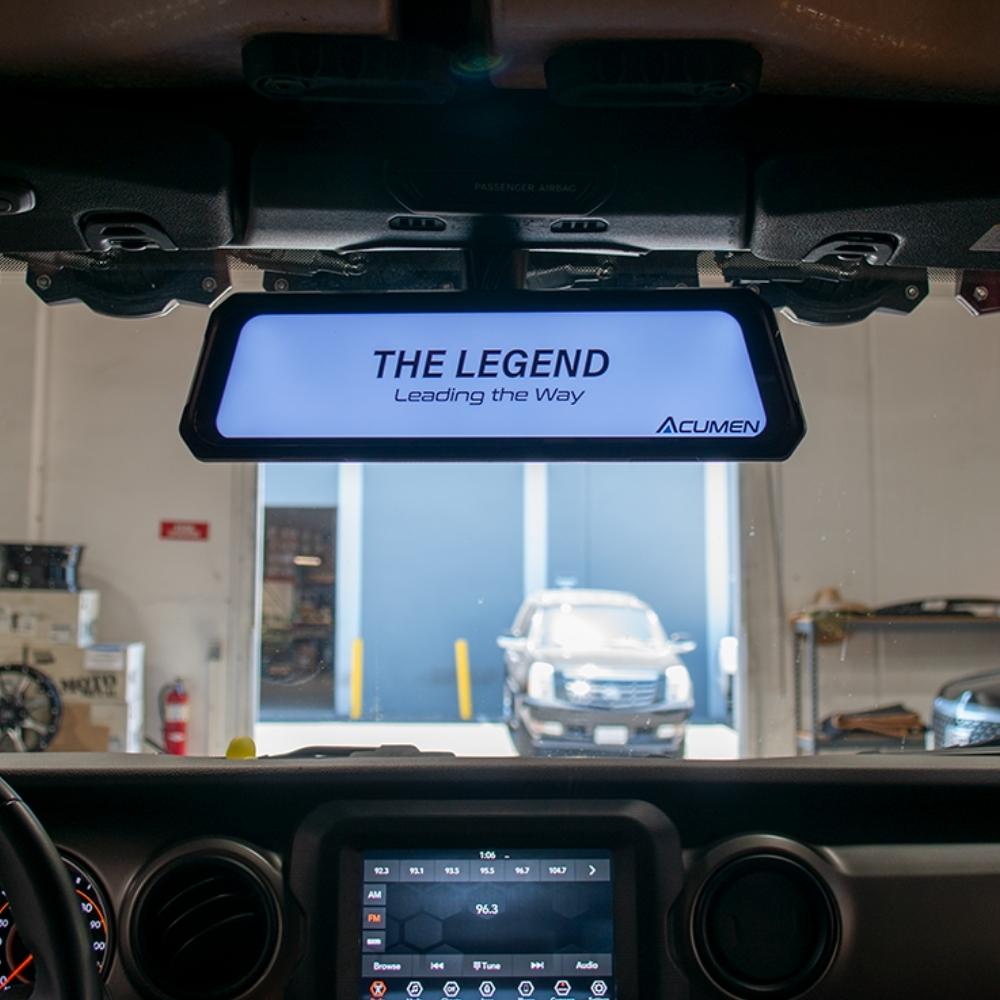

The Legend 2ch Mirror is a groundbreaking rearview mirror camera system that redefines durability, functionality, and safety for off-road enthusiasts and daily drivers. With its IP67 rating—the only one on the market—the Legend 2ch Mirror withstands high-pressure water jets, dust, and shock, featuring an integrated design with a buffer layer to absorb vibrations and a large heat sink for reliable performance from -4°F to 158°F. Its 12-inch IPS HD display with 2.5D curved touchscreen glass reduces glare and enhances visibility, controlling power switches directly via the LCD. The front camera of the Legend 2ch Mirror, with a starlight CMOS sensor, ISP processor, and 6 all-glass lenses, captures 4K video (3840×2160P@30fps), while the rear records 2.5K (2560×1440P) with WDR and a 170° FOV lens for clear night vision. Built-in WiFi and GPS enable real-time video sharing and route tracking via an app. With a supercapacitor, 9V-30V power range, a free 64GB card, and a 2-year warranty, the Legend 2ch Mirror is ideal for cars, trucks, SUVs, and UTVs.

The Legend 2ch Mirror

Parameter	Value
Screen Size (inch)	12" IPS Touch Screen
Dimensions (inch)	L12.3W3.3H1.6
Material	Aluminum & ABS
Weight (lbs)	1
# of Cameras	2
Front Camera Resolution	3840*2160P
Rear Camera Resolution	2560*1440P
Recording Resolution	4K Front +2.5K Rear
Footage Format	.MP4
Picture Format	.JPG
Camera Angle of View	Front: FOV 148°, Rear: FOV 170°
Camera Lens	Front: 6-Glass, Rear: 6-Glass
Night Vision	Super WDR
Wi-Fi APP Control	Yes
Bluetooth APP Control	False
GPS Logger	Yes
G-Sensor (Impact Sensor)	True

Parameter	Value
Loop-recording	True
SD Card Size	64GB (Up to 256GB)
Constantly recording time	6 hours
Parking Monitoring	Time Lapse, Up to 24 hours
Adjust Parking Guide Line	Adjustable
Extension Camera Cable	5Pin 32 Ft
Microphone	Built-in
Speaker	Built-in
Built in Battery	Super Capacitor
Waterproof & Dustproof	True
Operating Temperature	-22°F to 176°F（-30°C to +80°C）
Power Voltage	5V
AMP Rating	3A
Built in Programmable Switch Control	True
Acumen Programmable Switches Box	Yes

Parameter	The Legend 2ch Waterproof Rear View Mirror Dash Cam with 4K Front and 2.5K Rear Cameras	The Legend 3ch Waterproof Rear View Mirror Dash Cam with 1080P 60fps Front+ Rear+ Bumper/Cabin Cameras	The Legend 4ch Waterproof Rear View Mirror Dash Cam with 1080P Front+ Rear+ Left/Right Side Cameras	M4 2ch Mirror Dash Cam with 4K Front and 2.5K Rear Cameras, 12"IPS Touchscreen
Screen size	12" IPS Touch Screen	12" IPS Touch Screen	12" IPS Touch Screen	12" IPS Touch Screen
Dimension	L12.3W3.3H1.6	L12.3W3.3H1.6	L12.3W3.3H1.6	L12W3.1H0.9 inch
Material	Aluminum & ABS	Aluminum & ABS	Aluminum & ABS	ABS
Weight	1	1	1	1 lbs
Number of cameras	2	3	4	2 (Front & Rear)
Front camera resolution	3840*2160P	3840*2160P	3840*2160P	3840*2160P
Rear camera resolution	2560*1440P	1920*1080P	1920*1080P	2560*1440P
Recording resolution	4K Front +2.5K Rear	1080P Front +1080P Rear*2	1080P Front +1080P Rear*3	Front: 4K, Rear: 2.5K
Footage format	.MP4	.MP4	.MP4	MP4
Picture format	.JPG	.JPG	.JPG	.JPG
Camera angle of view	Front: FOV 148°, Rear: FOV 170°	Front: FOV 148°, Rear: FOV 170°	Front: FOV 148°, Rear: FOV 170°	Front: FOV 170°, Rear: FOV 170°
Camera lens	Front: 6-Glass, Rear: 6-Glass	Front: 6-Glass, Rear: 6-Glass	Front: 6-Glass, Rear: 6-Glass	7- Glass
Night vision	Super WDR	Super WDR	Super WDR	Super WDR
Wifi capability	Yes	Yes	Yes	5.8G
Bluetooth app control	N/A	N/A	N/A	N/A
Gps log	Yes	Yes	Yes	Yes
G sensor	true	true	true	true
Loop recording	true	true	true	true
Sd card	64GB (Up to 256GB)	64GB (Up to 256GB)	64GB (Up to 256GB)	64GB (Up to 256GB)
Constant recording time	6 hours	6 hours	6 hours	6 hours
Parking monitoring	Time Lapse, Up to 24 hours	Time Lapse, Up to 24 hours	Time Lapse, Up to 24 hours	Time Lapse, Up to 24 hours
Adjust parking guide line	Adjustable	Adjustable	Adjustable	Adjustable
Extension camera cable	5Pin 32 Ft	5Pin 18/32 Ft XLR	5Pin 18/32 Ft XLR	5Pin 32 Ft
Microphone	Built-in	Built-in	Built-in	Built-in
Speaker	Built-in	Built-in	Built-in	Built-in
Built in battery	Super Capacitor	Super Capacitor	Super Capacitor	Super Capacitor
Waterproof dustproof	true	true	true	N/A
Operating temperature	-22°F to 176°F（-30°C to +80°C）	-22°F to 176°F（-30°C to +80°C）	-22°F to 176°F（-30°C to +80°C）	-4°F~158°F （-20°C to +70°C )
Hardwire kit	N/A	N/A	N/A	XLR Plug
Power votage	5V	5V	5V	5V
Amp rating	3A	3A	3A	3A
Built in programmable switch control	true	true	true	N/A
Acumen programmable switches box	Yes	Optional	Optional	No
